Application:

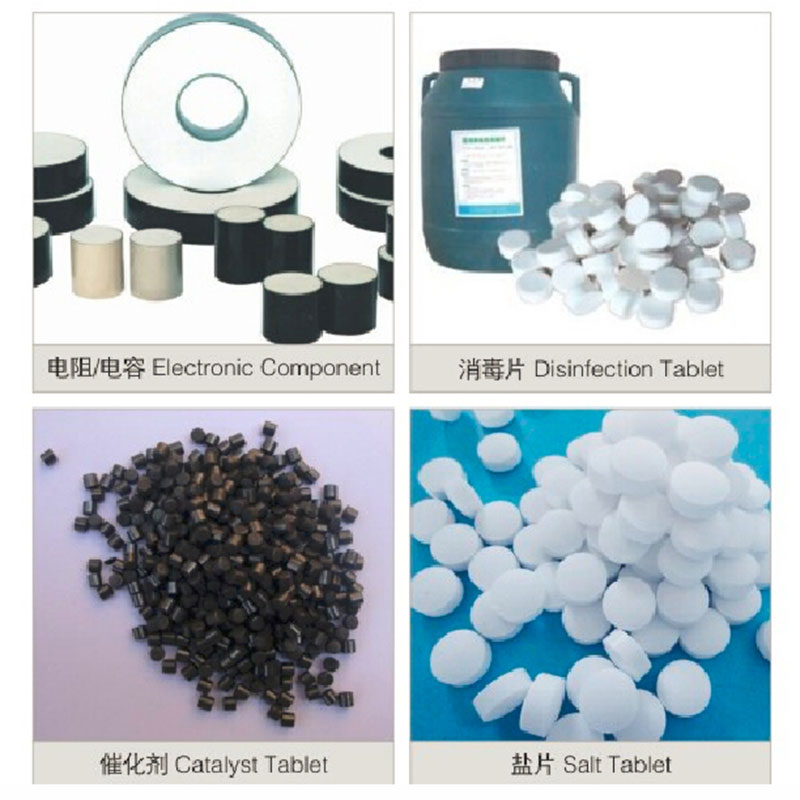

This machine is a specially designed equipment used for powder forming in petroleum, chemical, metallurgical, pharmaceutical, electronics, food and light industries.
The powdered material can be pressed into various shapes with different moulds used.
Characteristics:
It is a kind of efficient and fast two-way automatic forming machine, which can perform the functions of automatic feeding, forming, tableting and continuous operation. The maximum working capacity is 12000 pieces per hour. The speed of work head can function through stepless speed regulation, which can be changed according to material so as to obtain the best quality. The forming pressure can be adjusted within 25 tons and the maximum feeding depth is 57mm. This machine features compact structure, good adaptability, and convenient adjustment and maintenance.
Model | YH15 | YH17 | YH20 |
Numbers of Punch Stations | 17 | 17 | 20 |
Max Main Pressure (KN) | 250 | ||
Max Tablet Diameter (mm) | 55 | 50 | 40 |
Max Filling Depth (mm) | 70 | 70 | 57 |
Max Thickness of Tablet (mm) | 32 | 32 | 25 |
Max Turret Rotation Speed(r/min) | 12 | ||
Max Production Capacity (tablets/hour) | 10800 | 12240 | 14400 |
Motor Power (kw) | 7.5 | ||
Dimensions (mm) | 1660×1220×1870 | ||
Weight (kg) | 3800 | ||
