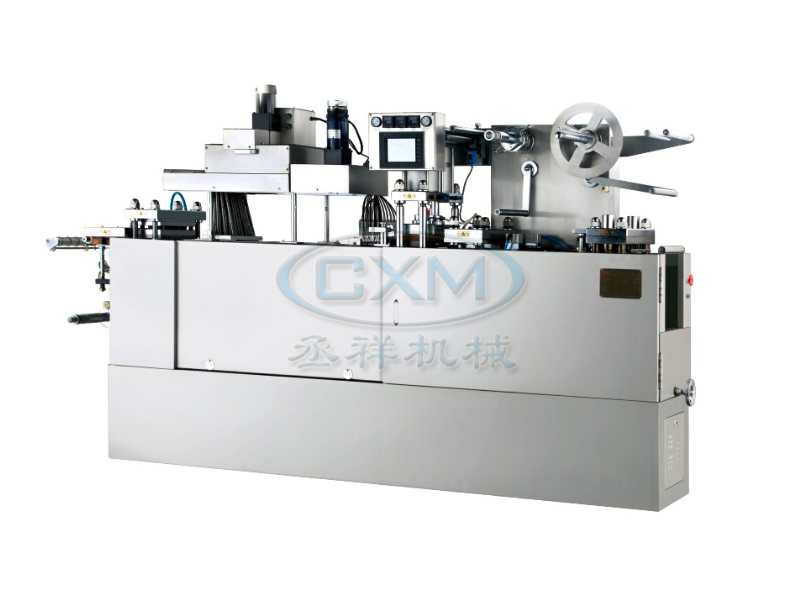

DPP series Blister Packing Machine
Application:
This blister packing machine is applicable to pack the tablets, hard capsules, soft gel capsules, candies, and pills into ALU/PVC, ALU/ALU or Paper/PVC package.
Features:
1. Worm wheel Reductor: Main machine overloading protect with lower noise and stabile running.
2. Adjustable range of stroke: can change the stroke dimension freely to suitable more kinds of product.
3. No waste material cutting station can save material cost.
4. Double orientation shafts with spline shaft transmission adopted to ensure synchronization stabile running.
5. Touch screen with PLC mould adopted, stabile operation and easy maintenance.
6. It also can pack with hard double-aluminum after refreshing the mould.
|
Model
|
DPP-80
|
DPP-140
|
DPP-250
|
|
|
Packing Speed (times/min)
|
20-40
|
20-40
|
20-40
|
|
|
Range of stroke (mm)
|
20-100
|
40-120
|
40-120
|
|
|
Packing material
|
Pharmacy PVC9mm)
|
(0.2-0.4)*80
|
(0.2-0.4)*120
|
(0.2-0.4)*250
|
|
Alu foil (mm)
|
(0.02-0.05)*80
|
(0.02-0.05)*140
|
(0.02-0.05)*250
|
|
|
Compressed air (pressure)
|
0.6-0.8MPa
|
0.6-0.8MPa
|
0.6-0.8MPa
|
|
|
Air consumption (m3/min)
|
≥0.2
|
≥0.2
|
≥0.2
|
|
|
Power Supply
|
AC380V 50HZ 1.8KW
|
AC380V 50HZ 5KW
|
AC380V 50HZ 6.5KW
|
|
|
Water chiller for moulds
|
Tap water or recycle water with 60L/h consumption
|
|||
|
Overall Dimensions (L*W*H mm)
|
900*460*890
|
3200*650*1700
|
3200*750*1700
|
|
|
Weight (kg)
|
350kg
|
1200kg
|
1700
|
|
