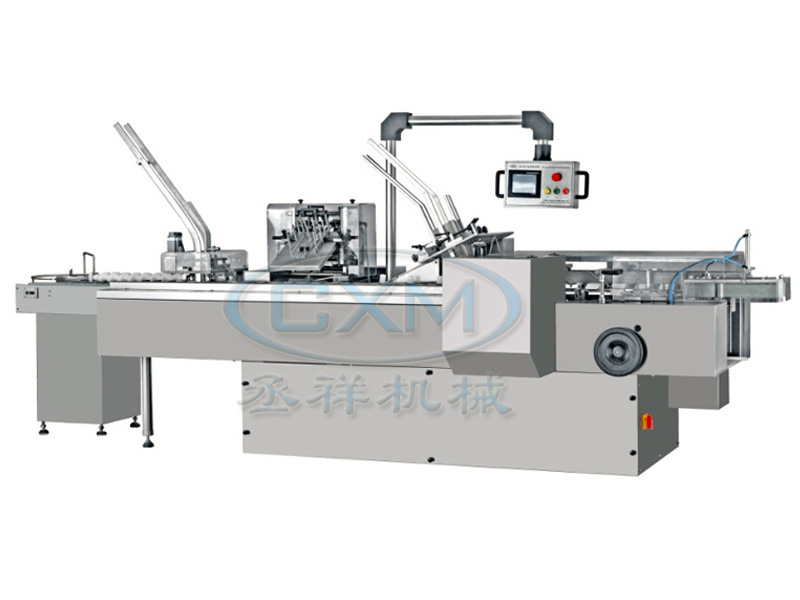

ZH120B Automatic Cartoning Machine

Short Description:

ZH120B Automatic Cartoning Machine

Product Detail

ZH120B Automatic Cartoning Machine
Product description:
It is developed by our own company with features of small cubage, light weight, widely used, high efficiency, multi-purpose gathered in a machine features, and also can be united to blister packing machine or bottling line, and qualified to GMP standard.
It is applied for medicine, foodstuff, cosmetic and small vessel packing, can pack different specifications blister, Chinese medicine, little long shaped articles and foodstuff packed into the specified box, and seal it. Also we can replace machine periodically accord to clients requirements, short mould manufacture periodicity, ease installment and debug, is applicable for singularity volume-produce and different items for few batch produce.
ZH120B Automatic Cartoning Machine

Product Parameters

Model
ZH120B
Packing Speed
60-100 cartons/min
Size of Carton Box (L*W*H)
(65-200)*(20-95)*(10-56)mm
Total Length of Carton Board
<360mm
Quality of Carton box
250-350 g/m2
Max size of the leaflet paper(L*W)
210*290 mm
Min size of leaflet paper (L*W)
70*90mm
Quality of Leaflet
60-70 g/m2
Pressure of Compressed Air
0.5-0.7 Mpa
Air Consumption
200-300 L/min
Working Noise
≤80dB
Machine Power
1.2KW
Power Supply
380V 50Hz 3 Ph
