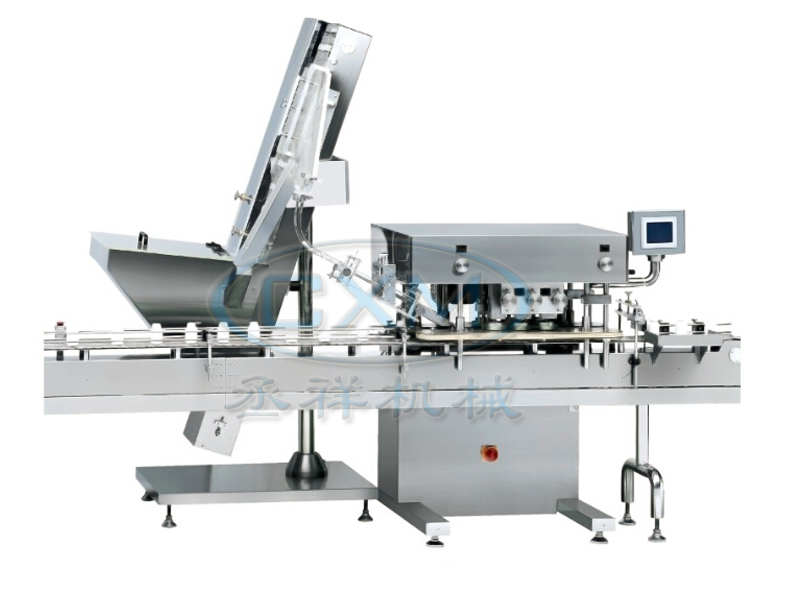

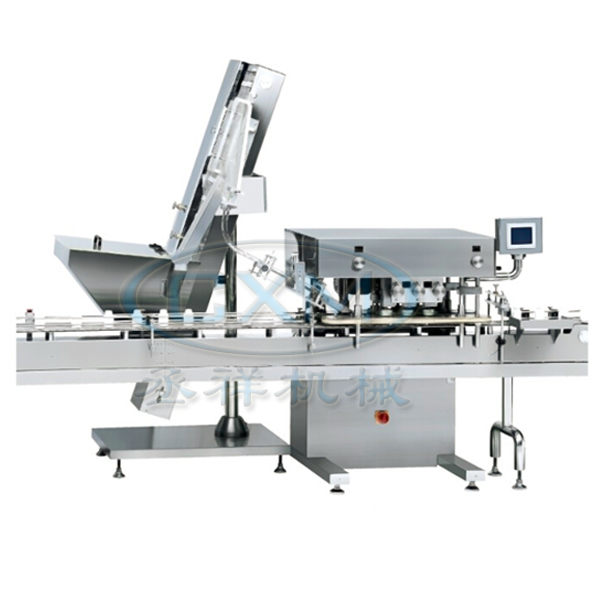

XGJ-120 Automatic Capping Machine

Short Description:

XGJ-120 Automatic Capping Machine

Product Detail

Applications:
This machine is used in packing of pharmaceutical industry, food industry and light industry. The passing bottle can be 100% revolved through three set of reverse rubber wheels and two sets of direct synchronous belts. The speed and degree of tightness of spiral capping can be adjusted according to user’s requirement. The specification of bottle (Φ35-100mm) can automatic be re-arranged caps, conveyed caps and revolved caps. This can be used along with automatic counting machine, paper filling machine, foil sealing and labeling machine. It can be used single too. It is up to GMP.

XGJ-120 Automatic Capping Machine

Product Parameters

Production Capacity
60-120 Bottles/minute
Cap Diameter
Φ25-Φ70mm
Vessel Diameter
Φ35-Φ140mm
Vessel Height
38-250mm
Machine Power
1.2KW
Overall Size (L*W*H)
1300*850*1400mm
Weight
600KG
Cap Dropper Dimensions (L*W*H)
1100*1200*2150mm
Cap Dropper Weight
190KG

Leave Your Message


Products categories

  • DPP80 Blister Packing Machine

    DPP80 Blister Packing Machine

  • DPH220 260 High Speed Blister Packing Machine

    DPH220 260 High Speed Blister Packing Machine

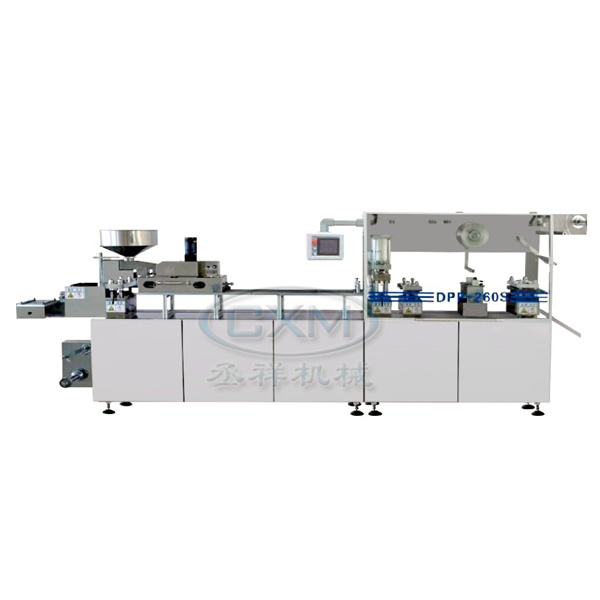

  • DPP-260S ALU/PVC & ALU/ALU Blister Packing Machine
