Applications:

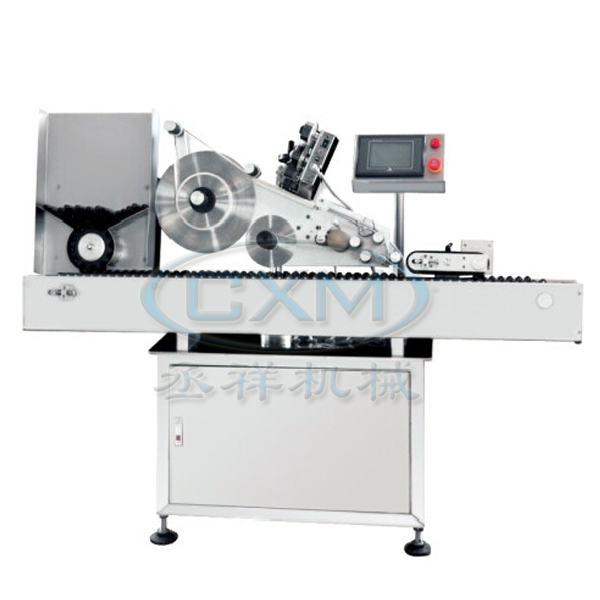

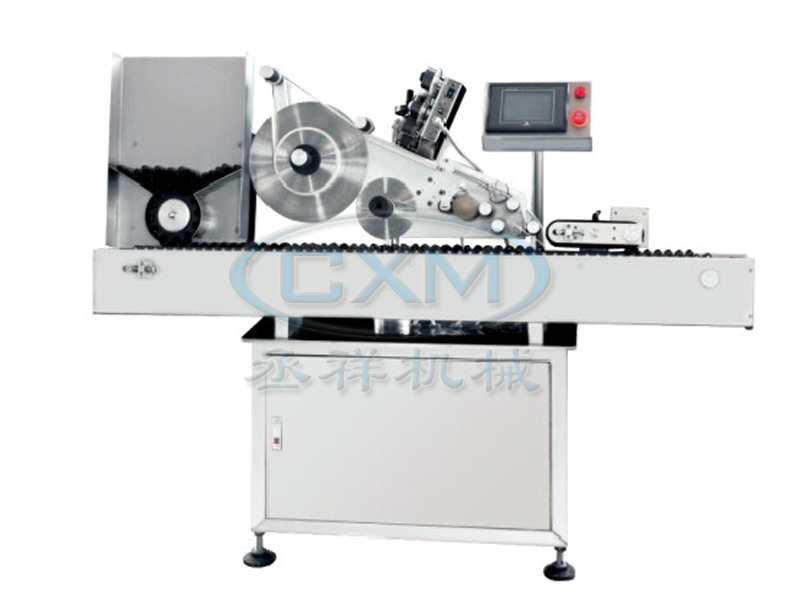

Horizontal non-drying glue labeling machine is widely used for such industries as food, medicine, fine chemical, cultural supplies, electronics and so on, it is applicable for the labeling of the objects with small diameters and unable to stand up easily, such as oral liquid bottles, ampoule bottles, needle tube bottles, batteries, hams sausages, test tubes, pens and so on.
|
Model
|
MPC-BS
|
|
Drive
|
Step motor driven
|
|
Labeling Speed
|
100-200 PCS/min
|
|
Bottle diameter
|
Φ10-25mm
|
|
Bottle height
|
20-130mm
|
|
Label size
|
Width:10-90mm Length:15-100mm
|
|
Precision
|
±1mm (Depends on subject roundness and vertical of the bottle)
|
|
Label roll
|
Max: Φ300mm
|
|
Label core
|
Stander: Φ75mm (3”)
|
|
Machine size
|
1600*600*1400mm
|
|
Weight
|
220kg
|
|
Power
|
AC 110V/220V 50/60HZ 500W
|
|
Coding device
|
DT-280
|
