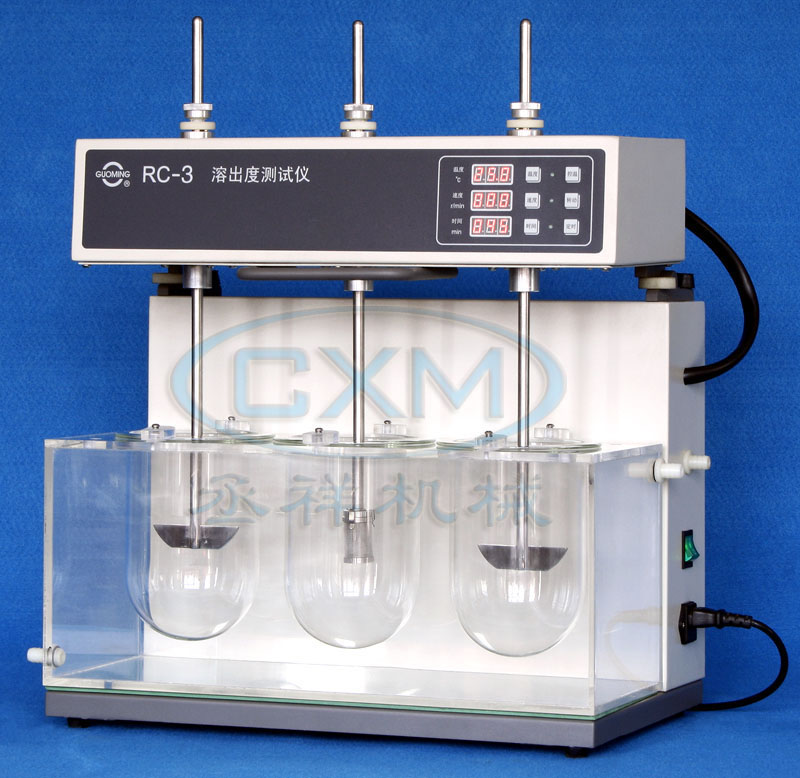

RC series of instruments are used for detecting velocity and extent of pharmic dissolution from tablet, capsule etc in prescriptive menstruum.
Applicable standards:
National standard (Chinese codex ) /2010
Corporate standard (Dissolution tester )Q/12XQ0187-2010
Features:
It has three vessels and three poles arranged on one line.
The head part of the instrument can be artificially turned over smoothly and flexibly.
The basket units and paddle units are made of imported stainless steel (SUS316L).
The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
It can be operated conveniently by keystroke. The measurement result is displayed by LED. The preset and real data can be displayed alternately in time.
Automation: auto-test, auto-diagnose, auto-alarm.
Speed range (20~200)rpm
Speed accuracy ±2rpm
Temperature range ambient to +45.0℃
Temperature Stability ±0.3℃
Preset timing nine points (5~900)min
Time accuracy ±0.1%
Paddle radial run-out ±0.5mm
Basket radial run-out ±1.0mm
Power 220V/50Hz/600W or 110V/60Hz/600W
Dimension (510*300*480)mm
Weight: 35kg
