Melting point is the temperature of something turning to liquid from solid. Testing it is the main method to detect some characters such as purity etc.

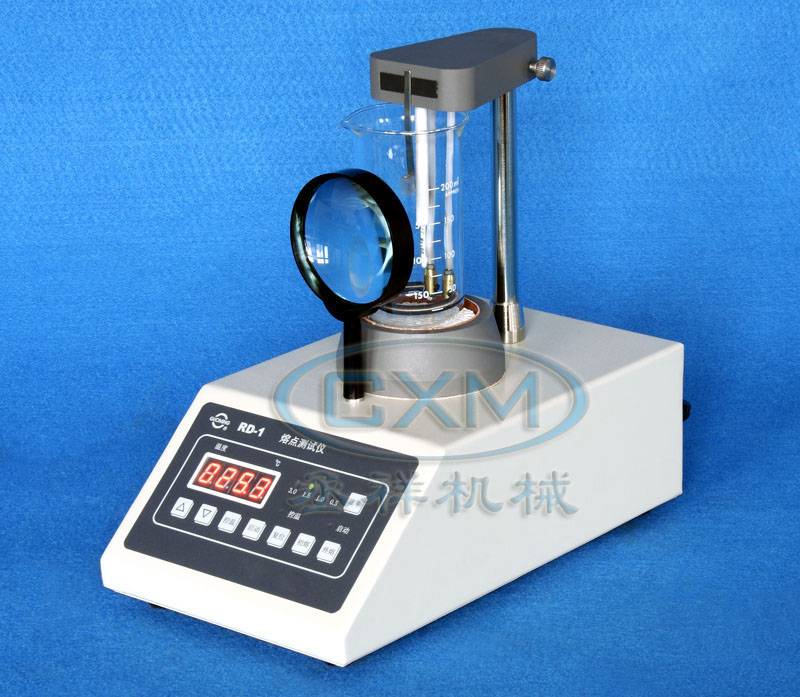

RD series are suitable for testing Melting points of drug, spice and dye etc.

National standard (Chinese codex) /2010

Corporate standard (Thickness tester) Q/12XQ0185-2010

Testing the temperature with high-precision sensor. emending nonlinear error automatically.

Using auto frequency-conversion control technology, with high accuracy in controlling temperature and little linear error in heating speed.

Auto-memorizing and noting preset data and melt point, holding without power.

Auto magnetism stirrer, with the bath oil even in temperature.

Auto-preset temperature, auto-heat, display preset and real-time data alternately in time.

Automation: auto-test, auto-diagnose, auto-alarm

Range of melting point (50～270)℃

Accuracy <200℃ ≯±0.5℃ ≥200℃ ≯±1.0℃

Usage temperature (15～35)℃

Range of preset temperature (50～260)℃

Oil bath methyl silicone oil

Oil bath cup 250ML high beaker

Rate (0.5、1.0、1.5、3.0)℃/min

Accuracy of Rate ≤10%

Power of the heater 200W

Power 220V/50Hz/500W

Dimension (320*180*310) mm

Weight 6kg
