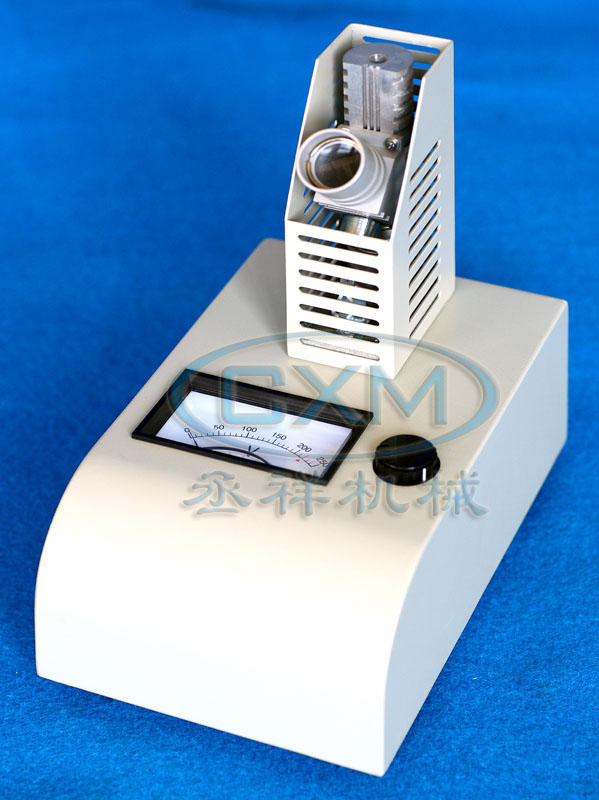

RY-1 MELTING POINT TESTER
Melting point is the temperature of something turning to liquid from solid. Testing it is the main method to detect some characters such as purity etc.
RY series are suitable for testing Melting points ofdrug, spice and dye etc.
RY series are suitable for testing Melting points ofdrug, spice and dye etc.
Applicable standard
Corporate standard (Thickness tester) Q/12XQ0185-2010
Features:
Test temperature with standard mercury thermometer.
Adjust heating voltage by a knob.
Display voltage with a analog voltmeter.
Observe Melting sample by a magnifier.
Test three samples at once.
Range of melting point (50～300)℃
Accuracy ±1.0℃
Usage temperature (15～35)℃
Rate (1.0、2.0、4.0、6.0)℃/min
Power of the heater 100W
Power 220V/ 50Hz/ 100W
Dimension (190*120*200) mm
Weight 3kg
