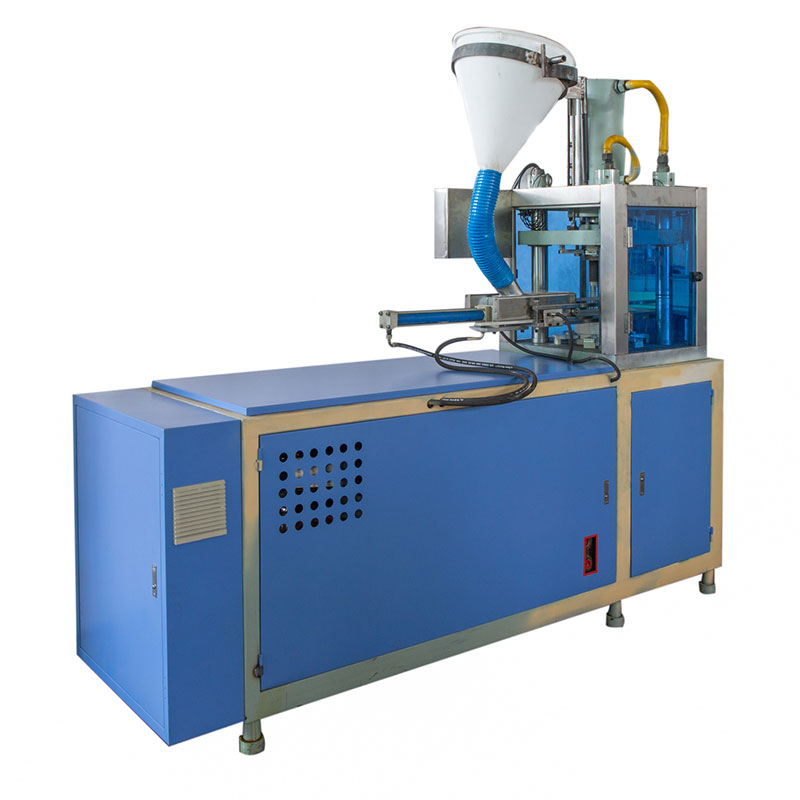

The Hydraulic press machine is newly developed tablet press which is used to produce big tablets from granular or powder material. It can be used to produce disinfectant tablets, salt tablets, detergent tablets, camphor ball, bath salt, ceramics tablets and so on.
It is suitable for big tablets which require high pressure, high density and high precision, while a multi-punch head can be used for large-scale production industries, it is easy to install and exchange the mold.
All actions are controlled by microcomputer. The press time, pressure, and thickness of tablets is adjustable.
The entire hydraulic system is reliable and avoids oil leaks and pollution.
Model | CX30T | CX45T |
Max Pressure (ton) | 30 | 45 |
Max Tablet Diameter (Round shape, mm) | 100 | 120 |
Max Thickness of Tablet (mm) | 20 | 30 |
Max Production Capacity (strokes per minute) | 3-5 | 3-5 |
Motor (kw) | 5.5 | 7.5 |
Dimensions (mm) | 1650*1100*1750 | 1800*1300*2100 |
Weight (kg) | 1300 | 1700 |
