Main Application:

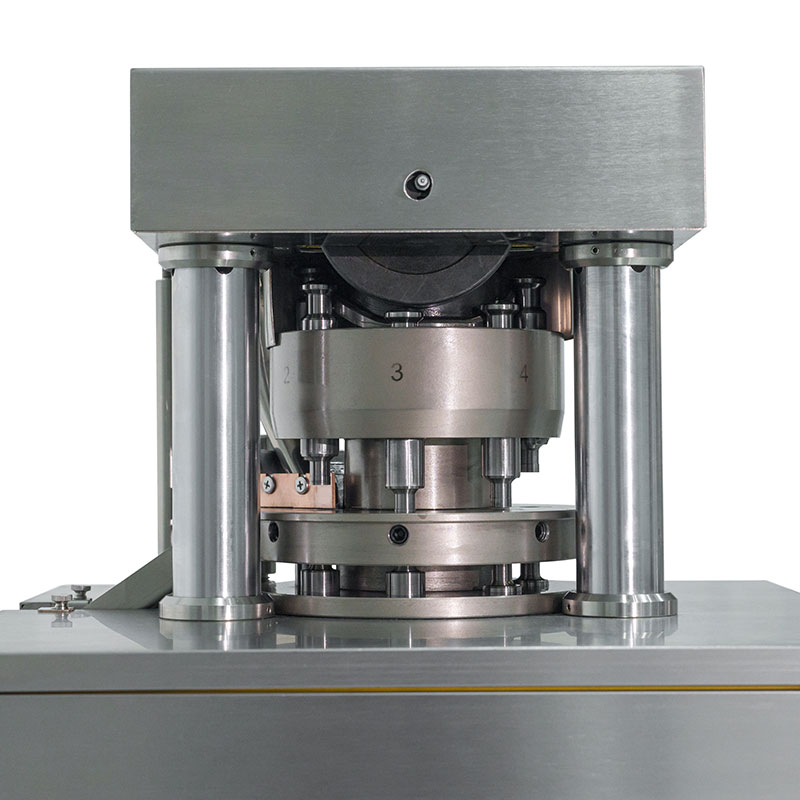

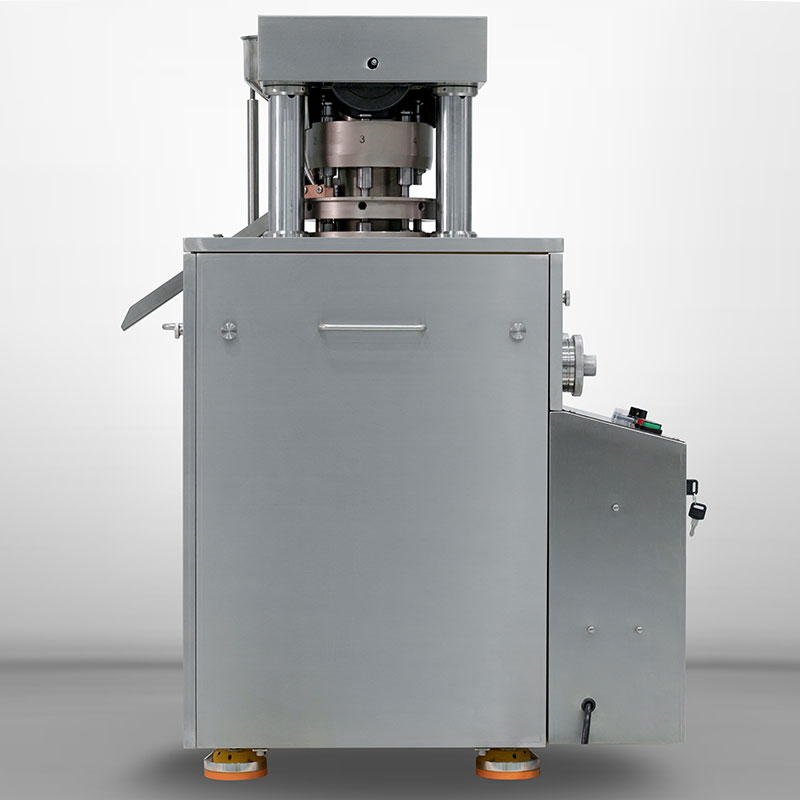

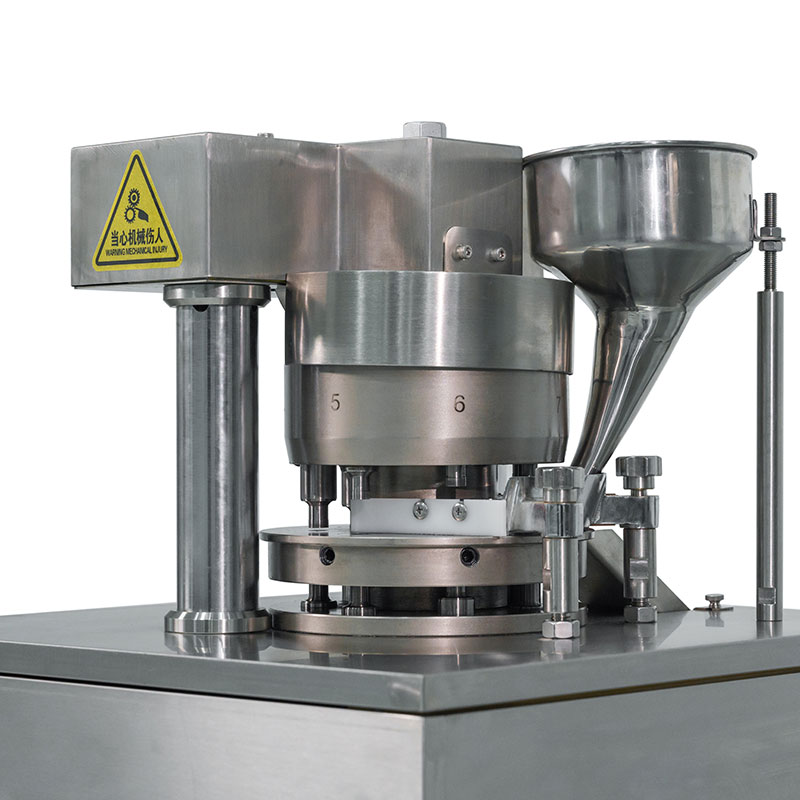

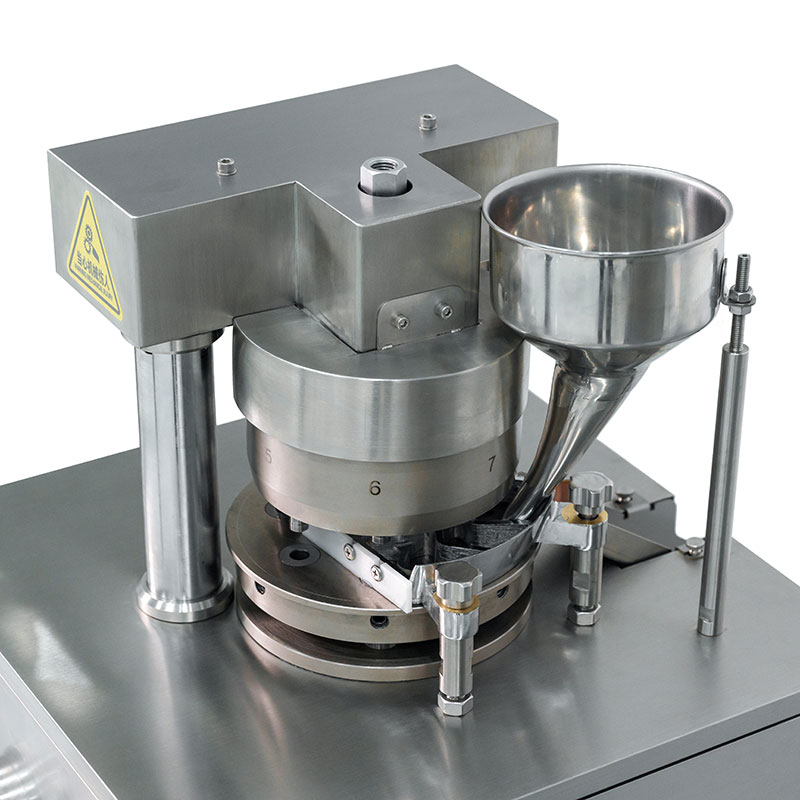

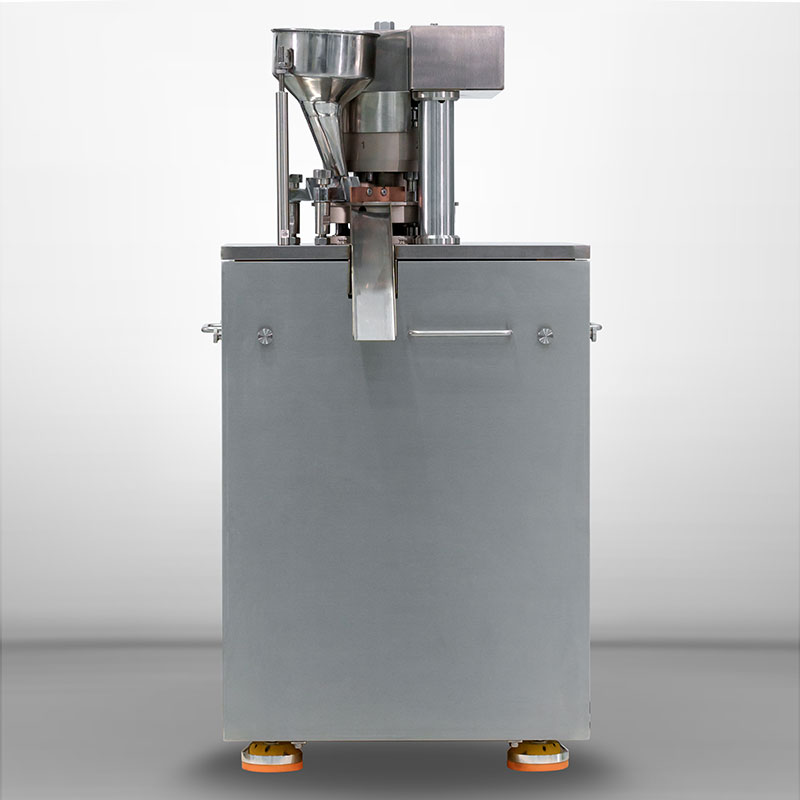

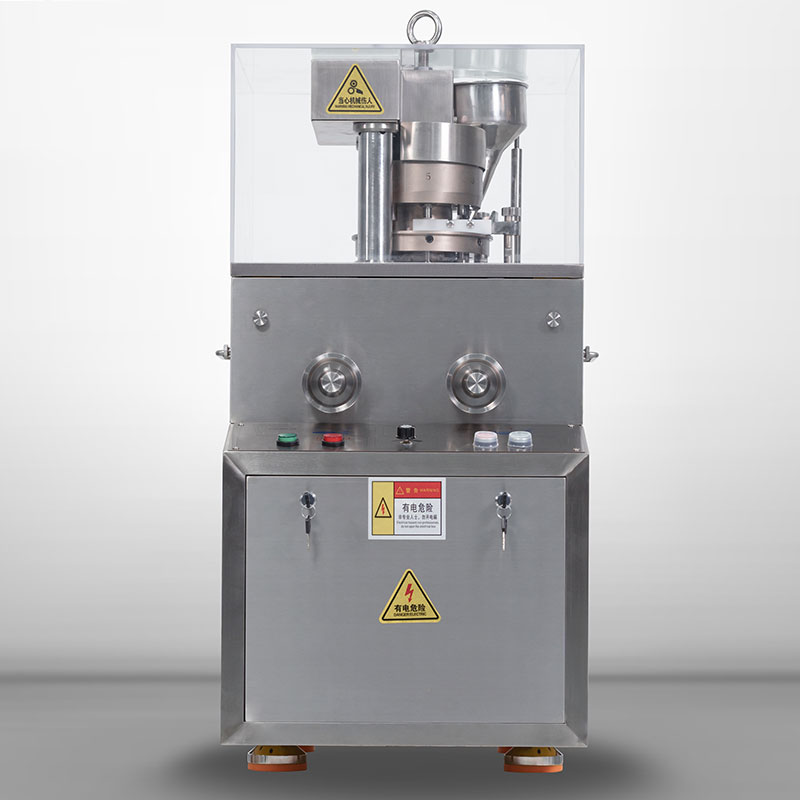

This machine is a new generation product by our factory, and this machine is a single Roller continuous automatic tablet press for pressing various kinds of different shape tablets and plain tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic industries.
Characteristics:
1. Design of GMP.
2. High quality all stainless steel constructions.
3. Reliable safety sealing system and dust-proof system.
4. High visibility isolated door to prevent cross contamination.
5. Easily removable parts for quick maintenance.
Model | ZP-5A/5B | ZP7A/7B | ZP-9A/9B |
Punch Type | ZP | ||
Numbers of Punch Stations | 5 | 7 | 9 |
Max Pressure (kN) | 60 | ||
Max Tablet Diameter (Round shape, mm) | 13/18 | ||
Max Filling Depth (mm) | 15 | ||
Max Thickness of Tablet (mm) | 6 | ||
Max Turret Rotation Speed(r/min) | 30 | ||
Max Production Capacity (tablets/hour) | 9,000 | 12,600 | 16,200 |
Electrical Supply Parameters | 2.2kw, 220V,1P/380V,3P | ||
Dimensions (mm) | 480*630*1020 | ||
Weight (kg) | 260 | ||
