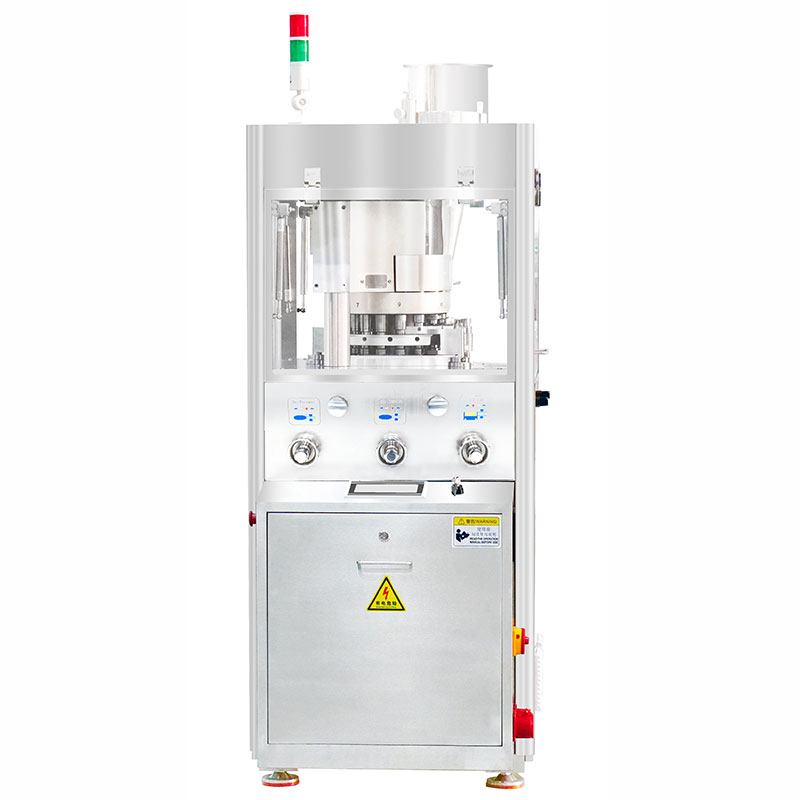

This machine is a fully automatic rotary continuous tablet press, featuring a wide range of applications to meet the tablet compression needs of various industries, including pharmaceuticals, chemicals, ceramics, food, electronics, plastics, and powder metallurgy. The equipment is equipped with multi-functional compression capabilities, enabling the production of both standard round tablets and complex-shaped tablets with diverse geometries. It is particularly well-suited for small-batch, multi-variety production modes. With its scientifically optimized design and outstanding performance, this machine has become the preferred solution for tablet compression processes in industries such as pharmaceuticals and food, delivering efficient, stable, and reliable tablet production support to users.
Feature:
1. The equipment features a fully enclosed peripheral shell design, with internal contact surfaces made of high-quality stainless steel to ensure surface smoothness and effectively prevent cross-contamination, complying with GMP standards.
2. Equipped with a high-transparency acrylic protective cover, it not only facilitates real-time observation of the tablet compression process but also allows full opening for convenient daily cleaning and maintenance of the equipment.
3. The machine is fitted with an advanced variable frequency speed control system, offering a wide speed adjustment range and a user-friendly interface to meet diverse process requirements.
4. It includes a PLC touchscreen, integrating functions such as speed and production display, as well as an automatic shutdown protection mechanism for pressure overload, ensuring safe and reliable operation.
5. The built-in pre-compression device effectively eliminates air from the filling material, extends the compression time, and enhances tablet quality.
6. The transmission system adopts an independently sealed design, located within the oil tank at the bottom of the main unit, achieving safe isolation to avoid mutual contamination while providing excellent heat dissipation and wear resistance.
7. An optional forced feeding device is available based on user requirements, further improving production efficiency and product quality.
Model | ZP14C | ZP16D | ZP17B | ZP21A |
Number of Punch Stations | 14 | 16 | 17 | 21 |
Max Pre-pressure (kN) | 30 | |||
Max Main Pressure (kN) | 80 | |||
Max Tablet Diameter (mm) | 25 | 22 | 20 | 13 |
Max Filling Depth (mm) | 16 | 16 | 18 | 15 |
Max Thickness of Tablet (mm) | 6 | |||
Diameter of Upper & lower punch(mm) | φ32 | φ25.35 | φ26 | φ22 |
Length of upper punch & lower punch(mm) | 133.6 | |||
Thickness of Middle Die(mm) | 22 | 23.81 | 22 | 22 |
Diameter of Middle Die(mm) | φ42 | φ38.1 | φ34 | φ26 |
Max Turret Rotation Speed (r/min) | 0~40 | |||
Max Production Capacity (Tablets/hour) | 33600 | 38400 | 40800 | 50400 |
Length & Width(mm) | 750×950 | |||
Height(mm) | 1700 | |||
Weight (kg) | 1100 | |||
