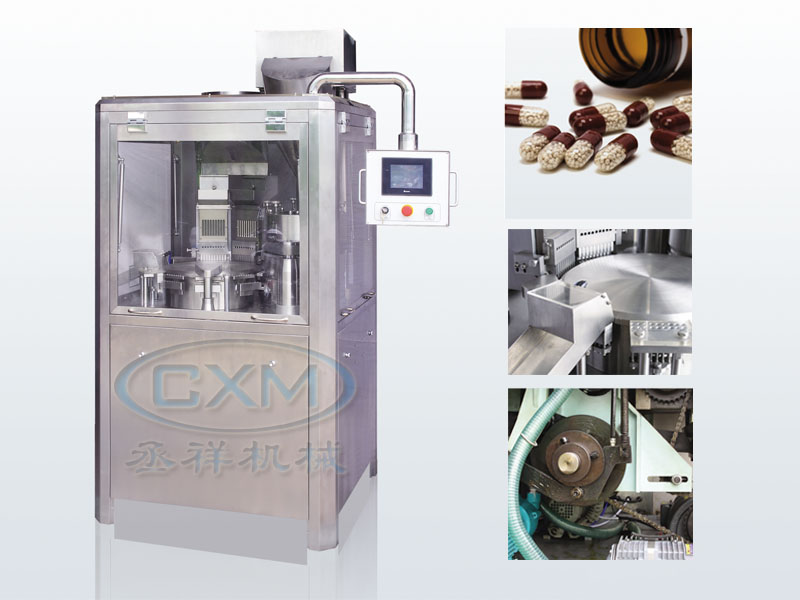

This machine is designed to meet the Volume-production on the base of NJP1200 automatica capsule filling machine.
Output is 120000 capsules/ hour. Velocity modulation and PLC control
Easy to operate and install. Meet the GMP requirements.
Main Features:
It has been improved the inner design turret, and imports beeline bearing for each machine from Japan directly, so that it can be sure a longer usage-life and precision of machine.
The working station cam runs under the good lubrication condition, and maintains the inner lubrication of cam slot to a full extent, increasing the pressure pulverization oil pump, thus extends the operation life of the spare parts.
It is controlled by the computer, has a stepless timing with the frequency-conversion, the numeral showing makes an easy operation and clear appearance.
The multi-bore dosing brings a precision dosage (it is controlled around ±3.5%); the good capsule applicability makes a higher capsule qualified rate (≥99%). It can be filled with the Chinese tradition medicine and Western medicine.
It has protector equipment for the operator and the machine. It has automatic pause equipment when it is lack of the material. It has a steady and safe working. It is the best choice for the hard capsule filling production.
Add the extra function of capsule control switch. (Control the capsule outside of the machine; it’s more safe and quicker.)
|
Model
|
NJP-1500
|
NJP-2000
|
|
Filling Dosage
|
Powder, Pellet, Tablet
|
|
|
Capsule Size
|
00#-5#
|
|
|
Maximum Output (capsules/hour)
|
90,000
|
120,000
|
|
Power Supply (kw)
|
6.82
|
6.82
|
|
Noise
|
＜78 dBA
|
＜78 dBA
|
|
Dimension (mm)
|
1150*1050*1970
|
|
|
Net Weight (kg)
|
1300
|
|
