The machine is used for forming the required granules from moist power material, or for crushing dried block stock into granules in required size. It main features are: the rotating speed of the rotor can be adjusted during operation and the sieve can be removed and remounted easily; its tension also adjustable. The driving mechanism is totally enclosed in the machine body and its lubrication system improves the lifetime of the mechanical components.
This machine is designed in accordance with GMP standard; its surface is made of high quality stainless steel and looks nice. Especially, the metal and stainless steel screen mesh improves the pellets quality.

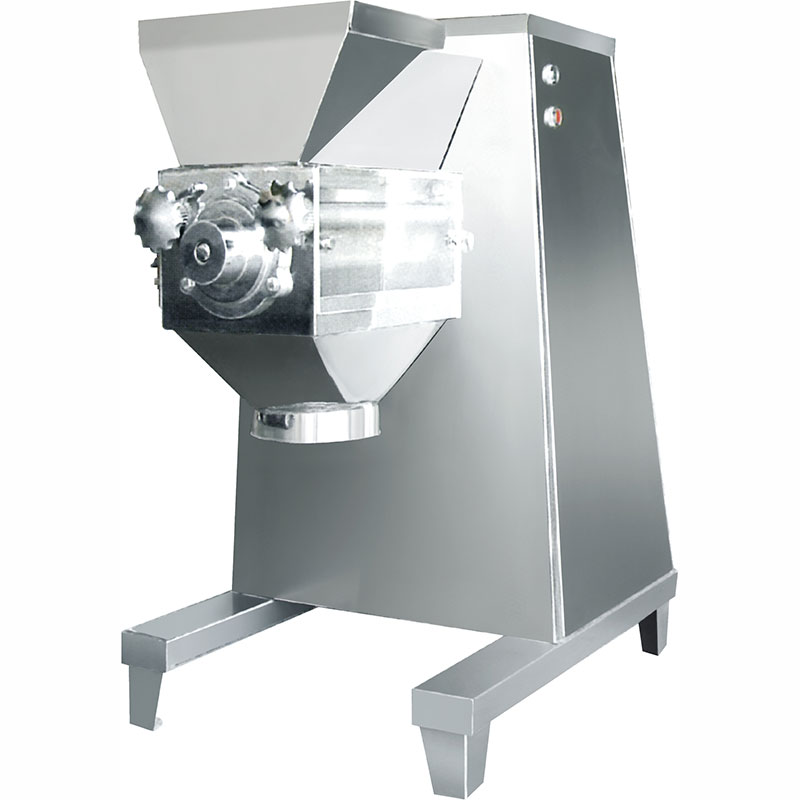

YK series Oscillating Granulator
The machine is used for forming the required granules from moist power material, or for crushing dried block stock into granules in required size. It main features are: the rotating speed of the rotor can be adjusted during operation and the sieve can be removed and remounted easily; its tension also adjustable. The driving mechanism is totally enclosed in the machine body and its lubrication system improves the lifetime of the mechanical components.
This machine is designed in accordance with GMP standard; its surface is made of high quality stainless steel and looks nice. Especially, the metal and stainless steel screen mesh improves the pellets quality.
Product Paramenters
| ITEM | TYPE | ||
| YK60 | YK90 | YK160 | |
| Diameter of Rotor (mm) | 60 | 90 | 160 |
| Effective Length Of Rotor (mm) | 184 | 290 | 360 |
| Rotor Speed( r/min) | 46 | 46 | 6-100 |
| Production Capacity (kg/h) | 20-25 | 40-50 | Dry 700 Wet 300 |
| Rated Motor (kw) | 0.37 | 0.55 | 2.2 |
| Overall Size (mm) | 530*400*530 | 700*400*780 | 910*700*1200 |
| Net Weight (kg) | 70 | 90 | 235 |
