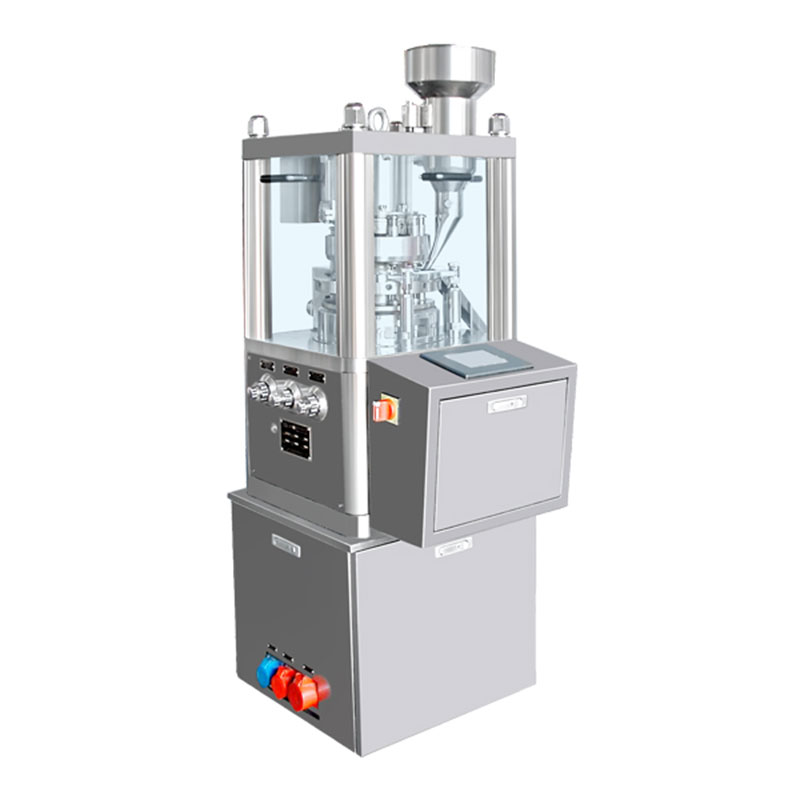

ZP198 Series Intelligent Rotary Tablet Press
ZP198 Series Intelligent Rotary Tablet Press Machine (rotary pill press) is a type of small output tablet press machine mainly suitable for use in R&D laboratories.
Application:
It is a type of small output tablet press machine mainly suitable for use in R&D laboratories.
Feature:
Single roller, fully enclosed in compliance with GMP requirement.
Speed adjustable by frequency inverter.
PLC and touch screen, friendly and easy to operate.
Digital display main pressure, tablet ejection force, tablet thickness, filling depth, rotation speed and output.
With main pressure and pre-pressure.
Overload protection for motor with emergency stop device.
Force feeder is optional.
Product Paramenters
| Model |
ZP8 |
ZP10 |
ZP14 |
ZP17 |
ZP21 |
ZP23 |
| Numbers of Punch Stations |
8 |
10 |
14 |
17 |
21 |
23 |
| Punch Type |
D |
D |
B |
B |
BB |
BBS |
| Max Main Pressure (kN) |
60 |
| Max Pre-pressure (kN) |
10 |
| Max Tablet Diameter (mm) |
round tablet |
25 |
25 |
18 |
18 |
13 |
11 |
|
Irregular tablet |
25 |
25 |
19 |
19 |
16 |
13 |
| Max Filling Depth (mm) |
16 |
| Max Thickness of Tablet (mm) |
6 |
| Max Turret Rotation Speed(r/min) |
30 |
| Max Production Capacity (tablets/hour) |
14400 |
18000 |
25200 |
30600 |
37800 |
41400 |
| Motor Power (kw) |
1.5 |
| Dimensions (mm) |
700×580×1630 |
| Weight (kg) |
650 |
