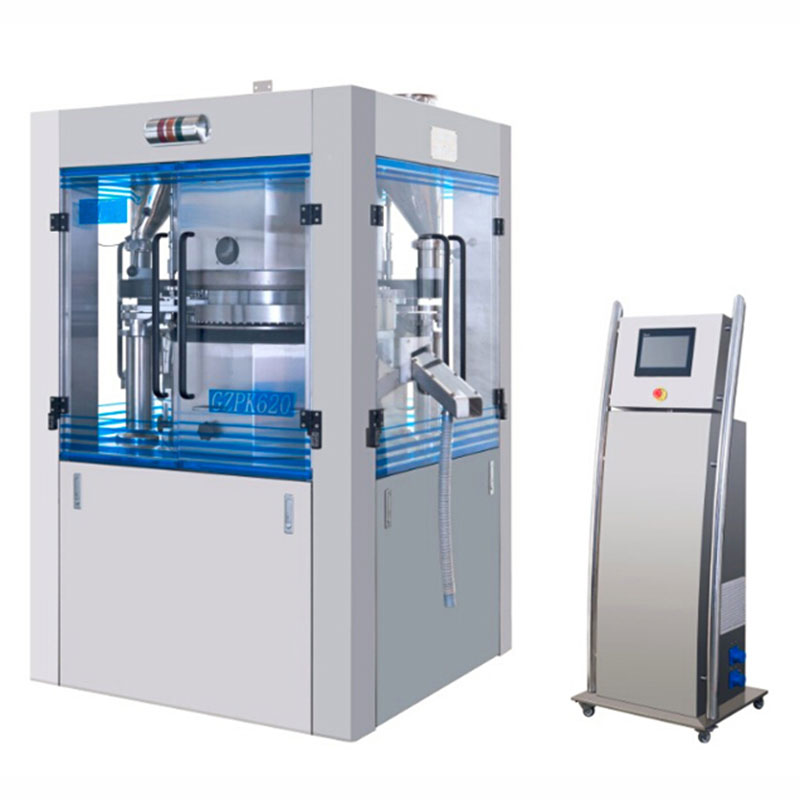

GZPK620H series High Speed Rotary Tablet Press

Short Description:

GZP(K) 620 series High Speed Rotary Tablet Press is one kind of double side rotary tablet press machine, which can press granular materials into round shape tablet, irregular tablet or double-side engraved tablet. This machine is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries.

Product Detail

Application:

This machine is one kind of double side rotary tablet press machine, which can press granular materials into round shape tablet, irregular tablet or double-side engraved tablet.

This machine is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries.



Note:

1. GZPK620 model adopts advanced operation system and tablet weight control system, adjust each operation parameter (main pressure, pre-pressure and filling depth) easily without hand wheel. Effective detecting and adjusting for tablet hardness and weight is achieved.

2. GZPK620 model can record all the process parameters for each production batch, it is convenient for operator to control the machine.



Feature:

1. High speed with large quantity punches, double press rollers, suitable for mass production.

2. Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.

3. Perfect tableting system, twice compression forming, reasonable framework with proper space and big pressure roller, machine performance is reliable and no tablet weight difference.

4. Double impeller type force feeder, improve granules flow-ability and filling performance, ensure the filling precision.

5. Tooling track adopt double-side lifting structure, the punches are balanced stress and wear resistance.

6. High performance electrical control system, ensure each program processing precisely.

7. Automatic oil & grease central lubrication system, ensure the lubrication of pressure rollers, toolings and tracks, extending the working life of the machine.

8. Special oil proof, dust proof and noise proof design.


Product Parameters

Model

GZP(K)-45

GZP(K)-55

GZP(K)-65

GZP(K)-69

Numbers of Punch Stations

45

55

65

69

Punch Type

D

B

BB

BBS

Max Main Pressure (kN)

100

Max Pre-pressure (kN)

20


round tablet

25

18

13

11

Max Tablet Diameter (mm)

irregular tablet

25

19

16

13

Max Filling Depth (mm)

20

18

15

15

Max Thickness of Tablet (mm)

8

7

6

6

Max Turret Rotation Speed (r/min)

60

Max Production Capacity (tablets/hour)

324000

396000

468000

496800

Motor Power (kw)

11

Dimensions (mm)

1530×1250×1900

Weight (kg)

4300
