Product description:

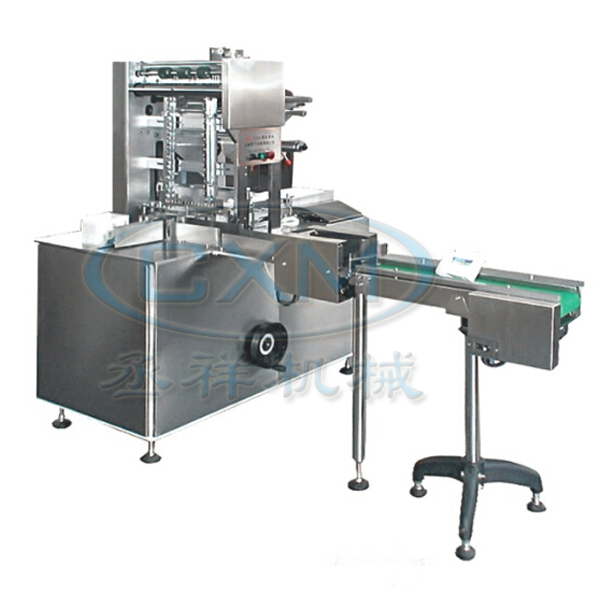

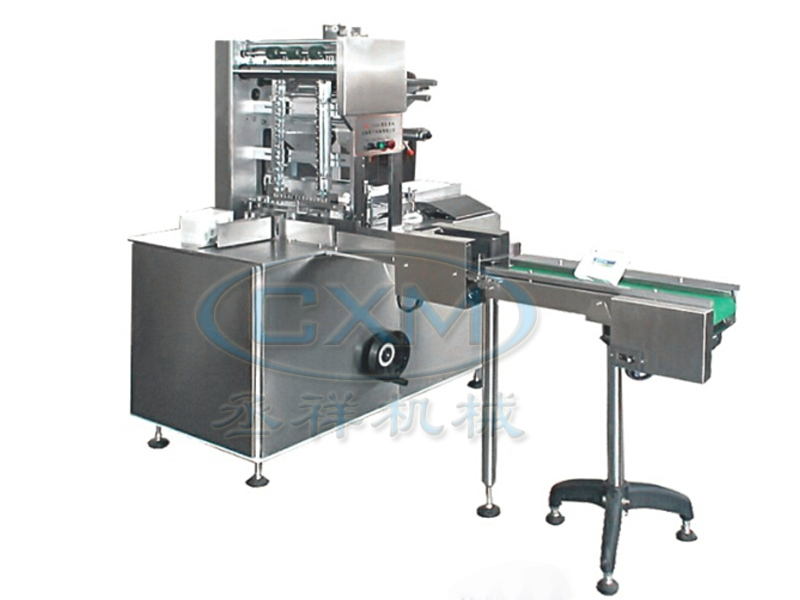

This machine is applicable for medicine, health food, food, cosmetics, tobacco etc. As the cluster wrapping for small ox and substitute box, it is a newly and ideal wrapping machine for medicine and health food with high quality wrapping demand. Cellophane Wrapping Technology is one of the most advanced wrapping technologies in the current market. Adopting Italian advanced technology, the products has reached the international advanced level and obtained national patent. The machine can automatically finish the whole process of wrapping, feeding, folding, hot sealed, counting, and affixing the antifogging pull line. Transparent film is completely packed outside the box. A packed goods applying this machine is beautiful and unconventional in exterior. Beneficial to improve product packing grade and additive valve, also ensure the packed products sealed, moisture proof, antipollution. The instant sealed technology is pioneer in the domestic.
Model
|
TCGB-3
|
Packing Speed
|
10-30 boxes/min
|
Dimensions available for packing operation (mm)
|
L(340-60)*W(240-40)*H(125-20)
|
Cellophane
|
PVC or BOPP
|
Diameter of inner hole
|
Φ75mm Thickness 0.021-0.028mm
|
Width
|
Optional based on the dimensions of packing box
|
Temperature of sealing
|
100-140℃
|
Power Supply
|
380V/50Hz/3 Phase
|
Total powder
|
2.2KW
|
Work pressure
|
0.6MPa
|
Integrated noise
|
<69Db(A)
|
Dimensions
|
1600*700*1660mm
|
Weight of machine
|
600KG
|
