Applications:

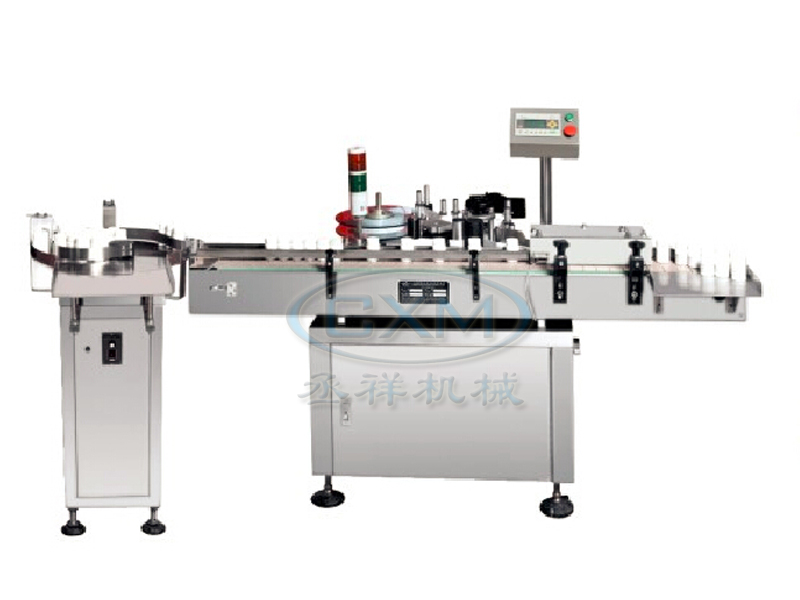

Vertical non-drying labeling machine is mostly applicable for the automatic labeling of column, square or taper package containers for medicine, daily chemical, food, cultural supplies, electronics and etc. It can automatically check the length of labels and is equipped with warming device of insufficient labels, broken labels and no chromatapes.
The human-machine touch screen is easy and visual to operate, in addition, it has rich help functions and failure display functions.
|
Model
|
MPC-AS
|
|
Drive
|
Step motor driven
|
|
Direction
|
Right/Left
|
|
Labeling Speed
|
0-200 PCS/min
|
|
Bottle diameter
|
Φ20-100mm
|
|
Bottle height
|
20-200mm
|
|
Label size
|
Width:10-90mm Length:15-200mm
|
|
Precision
|
±1mm (Depends on subject roundness and vertical of the bottle)
|
|
Label roll
|
Max: Φ300mm
|
|
Label core
|
Stander: Φ75mm (3”)
|
|
Machine size
|
1600*800*1300mm
|
|
Weight
|
220kg
|
|
Power
|
AC 110V/220V 50/60HZ 500W
|
|
Coding device
|
DT-280
|
